Ring speed jumper
|
|
The Token Ring card is equipped with a single three-pin jumper to set the ring speed. There are two settings: 4 Mbps and 16 Mbps.
Note
If you received your printer with the Token Ring card already installed, you must turn off the printer and remove the card before you change the jumper setting.

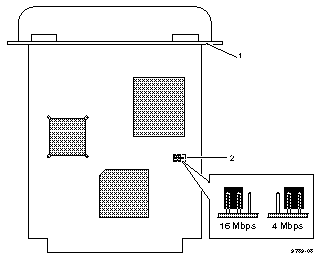

The following illustration shows a top view of the card and the location of the jumper.
-
Rear panel
-
Jumper
|
| |
|
