Cleaning for lower tray jams: paper-pick rollers
|
|
Approximate time to complete: 1 minutes
If you are experiencing media-feeding problems, including mispicks and multiple picks of paper from the Lower Paper Tray Assembly, you can generally correct the problem by cleaning the media-pick rollers with isopropyl alcohol.
- Remove the lower paper tray from the Lower Paper Tray Assembly.

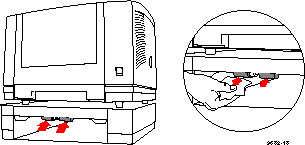

- Locate the media-pick rollers according to the following illustration.
- Using an alcohol-soaked cloth, scrub both pick rollers thoroughly.
- Replace the lower paper tray in the Lower Paper Tray Assembly.
|
| |
|
