Media Jams
|
Preventing media jams
-
To reduce the frequency of media jams, use Xerox media and occasionally clean the rollers. See
Occasional Cleaning.
-
When using the Multi-Purpose Tray, always set the media thickness switch for the media you are using. See
Setting Media Thickness.
-
If the printer frequently reports
Jam at Multi-Purpose, move the media thickness switch to a thicker setting.
Locating a jam
The front panel reports
Jam at <Location>. The
<Locations>
are the sensors listed as
A
through
E. Line 2 of the front panel message directs you to the location of the jam. For example:
Jam at A
Open left side door
Jam at A
Solution 1
Open the left side door; remove the jammed media.
|
Solution 2
Remove the media tray; remove the jammed media from inside the printer.
|
Jam at B
Solution 1
Open the lower left side door and remove the jammed media.
|
Solution 2
Remove the selected media tray (middle or lower tray) and remove the jammed media from inside the printer.
|
Jam at C
-
Remove the fuser:
-
Open the printer's front door.
-
Turn the small blue thumbscrew
counterclockwise
to unlock the fuser.
-
Press the safety catch and slide the fuser out of the printer.
-
Remove the fuser roll:
-
Press
out
on the two tabs to unlock the fuser roll.
-
Lift the fuser roll out of the fuser and set it aside.
-
Turn the fuser's large blue knob
clockwise
or
counterclockwise
to release the jammed media.
-
Remove the jammed media from the fuser.
-
Re-insert the fuser roll into the fuser; re-install the fuser.
The fuser is hot. To avoid personal injury, use caution or wait for it to cool before touching it.
Jam at D
The fuser is hot. To avoid personal injury, use caution or wait for it to cool before touching it.
Solution 1
-
Open the front door.
-
Pull open the access door; the media is visible.
-
Turn the fuser's large blue knob
counterclockwise.
-
Remove the media.
If the fuser knob will not turn, do not force it or you may damage the fuser. Instead, remove the fuser and fuser roll; then turn the fuser knob to release the jammed media.
|
Solution 2
-
Open the front door
and
the right side door.
-
Turn the fuser's large blue knob
counterclockwise.
-
Remove the jammed media.
|
Jam at E
Solution 1
Remove the jammed media from the output tray.
|
Solution 2
Pull open the access door (above the plastic output tray) and remove the media.
|
Open and close the printer's front door to clear the error message.
|
Jam at Multi-Purpose Tray
-
Remove all media in the Multi-Purpose Tray.
-
Remove the jammed media from the Multi-Purpose Tray.
-
Set the Media Thickness switch for the media you are using (
Setting Media Thickness
).
-
Re-insert the media in the Multi-Purpose Tray.
|
|
Open and close the printer's front door to clear the error message.
|

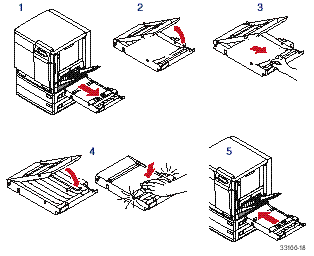

Jam at Duplex Unit
-
Remove the duplex unit (it is in the printer's
upper
slot).
-
Open the duplex unit.
-
Remove the jammed media.
If paper is not in the duplex unit, open the right side door; paper may be jammed there.
|
-
Close the duplex unit; press down to make sure that it snaps shut.
-
Re-insert the duplex unit into the printer's
upper
slot.
